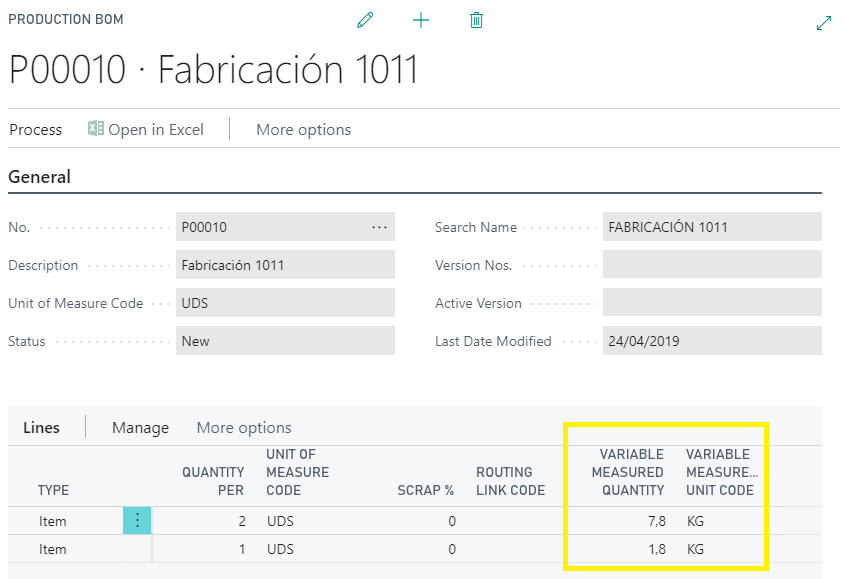

Production BOM

Manufacturing Route

In the lines of the manufacturing routes we have the following fields:

• Variable Measured Quantity. This field is initialized when indicating the quantity according to the relation that we have indicated in the item between the base unit and the variable unit of measure. The data is editable.

• Variable Measurement Unit Code. This field is informative. It is used to show the user which is the variable unit defined in the item.

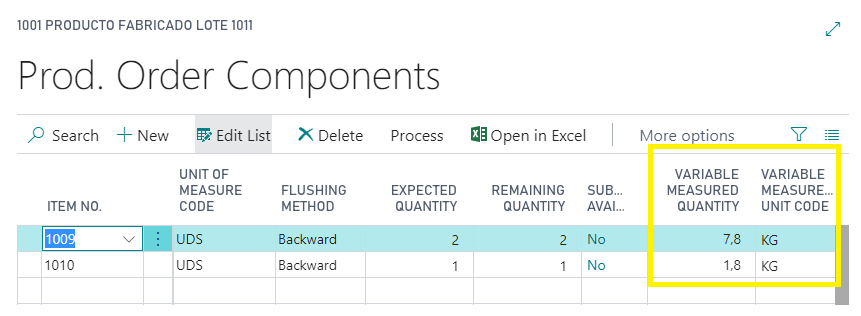

Prod. Order Components

When the manufacturing order is updated, the component lines are updated with the new variable unit management fields:

• Variable Measured Quantity. This field is initialized when indicating the quantity according to the relation that we have indicated in the item between the base unit and the variable unit of measure. The data is editable.

• Variable Measurement Unit Code. This field is informative. It is used to show the user which is the variable unit defined in the item.

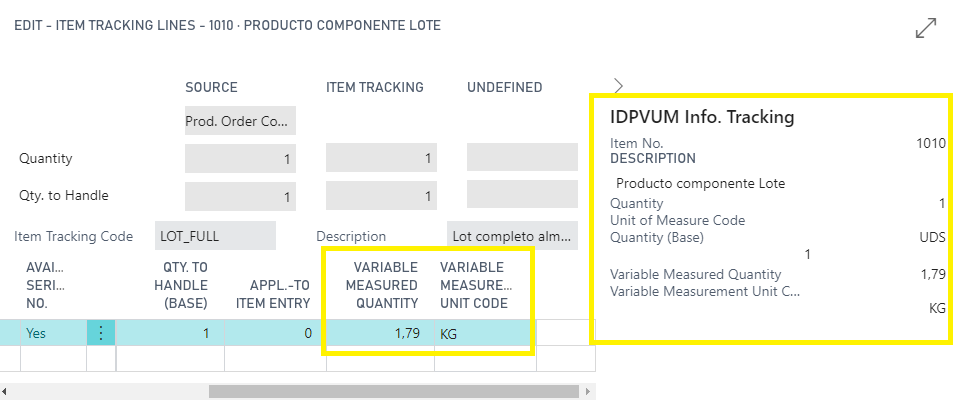

Item Tracking Lines Prod. Order Components

If the product is configured for lot or serial tracking, we find additional fields in the item tracking window and an auxiliary window with information about the componenet of the production order line.
